EVERY GAS & LIQUID MIXING TECHNOLOGY
MIXING, METERING, AND INJECTING DEVICES FOR ANY GASES OR LIQUIDS OTHER THAN POLYURETHANE.
Our company offers all kinds of liquid and gas blending technics and devices based on extensive expertise in polyurethane mixing technology.
Liquids and gases of low solubility level could be successfully blended if using dynamic or static mixers.
Please contact us to get our experts timely advice on liquids and gases mixing, metering, injection devices and technics in all food and chemicals related fields.
BLENDING METHOD

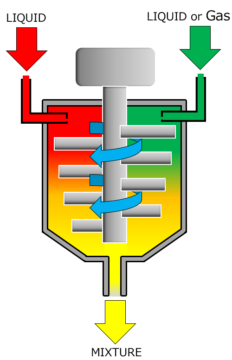

■Dynamic mixer (rotary mixer/power mixer)
Please see a description of dynamic and static mixers to achieve a flawless mixing effect.
This method ensures that a liquid or a gas supplied to a chamber (container) equipped with a mixing rotor (stirring blade), effectively blended. The effect reached and maintained through the accurate adjustment of the mixing rotor revolving speed and regulation of the liquid and gas pressure.

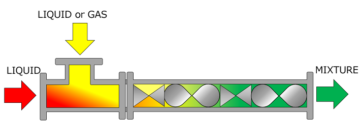

■ Static Mixer
The Static Mixer is a method that helps to reach the desired perfect fluid mix by the action of separation, transformation, and recovery without applying dedicated power. The pip internal spiral elements with left and right twists ensure that the supplied liquid is evenly mixed by repeating separation, transformation, and recovery stages.
SUPPLY METHOD
Please see the description of the supply pumps suitable for the static and dynamic mixers.
■The Gear Pump
It is a pump that retains two gears suck in when open and discharge when close. Sever different gear shapes are available and vary among manufacturers. There is a space (Clearance) between the gear and casing that enables a viscous liquid supply.
■The Plunger Pump
A plunger pump is a positive displacement pump that reciprocates (to-and-fro motion) a rod-shaped piston supplying fluid by the piston stroke. The pump structural features enable to supply at high pressure and even with low viscosity fluid like water. The discharge amount could be easily adjusted.
■The Diaphragm Pump
This type of pump consists of two valve. The diaphragm (membrane) moves up and down, or left and right, adjusting the volume inside the membrane and performing suction and discharge simultaneously. The most significant feature is no seal, the risk of a liquid leakage cut to the minimum possible one and often used as the raw material and chemical supply.
Liquid Storage Tank

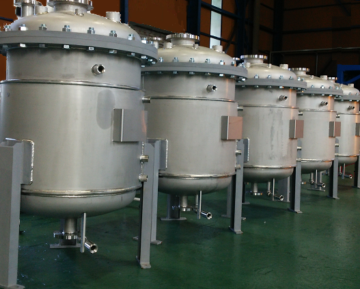

■Stainless Steel Tank
The highly durable stainless steel tank is a rust-resistant and widely used in numerous applications such as factory productions lines, laboratory equipment, and liquid storage, to mention a few.
We are capable of manufacturing custom-made tanks to meet customer special requirements to the maximum level.
- Pressurized tank (0.1MPa or more and less than 1.0MPa)
- With a stirrer
- With double jacket temperature control (temperature control medium: water or oil, etc.)
